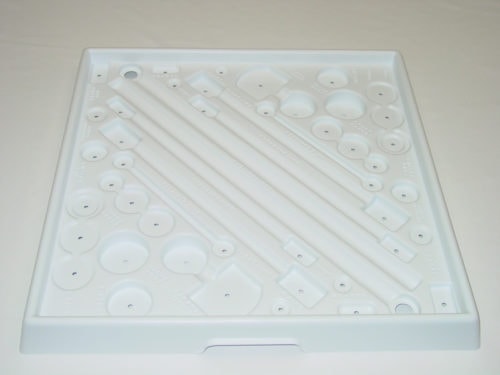

Plastic Thermoformed Parts Tray for Food Service Machinery

Home > Project Gallery > Plastic Thermoformed Parts Tray for Food Service Machinery

Plastic Thermoformed Parts Tray for Food Service MachineryNorthern Precision Plastics demonstrated our continuing commitment to safe food service product manufacturing by taking on this project, thermoforming a series of trays to hold parts for the food service industry. Even for products such as this one, , it was important to maintain a contaminant-free environment. In addition, keeping all dimensions and features accurate ensured that the tray would operate safely and as intended.

The outer tray footprint measured 29.125″ by 19.125″, with a height of 2.250″. Adding to the complexity of the piece were a number of drainage holes, each measuring 0.250″ in diameter. Holding tolerances of ±.007″ throughout all production, we delivered the completed order to our satisfied customer, where they are serving as intended, keeping food equipment safe and useable.

Request A Quote

Project Details For This Plastic Thermoformed Parts Tray For Food Service Machinery

Product Description This thermoformed tray is used to safely hold parts for food service machinery.
Capabilities Applied/Processes Thermoforming 5 axis CNC routing, trimming, cleaning
Overall Part Dimensions
  • Material Thickness: .190"
  • Length: 29.125
  • Width: 19.125
  • Height: 2.250"
  • Drain Holes: Ø.250"
Tightest Tolerances
  • ±.007"
Color White
Estimated Part Weight 5.25 pounds or 84.00 ounces
Industry for Use Food Service
Delivery Location Northern Illinois, USA
Standards Met Customer supplied print, 2D CAD Drawing
Product Name Parts Tray
